The Python Editor

The Python Editor is a type of editor in the main Gaffer application that can execute arbitrary Python code with a built-in interpreter. It enables you to modify the node graph, try commands and syntax, and inspect data. In the default layout, it resides in the bottom-right panel, in a tab next to the Hierarchy View.

Each Python Editor is a separate instance. Python modules that you import will remain loaded in that particular editor for its lifetime. However, you never need to import the Gaffer or IECore modules. They are loaded by default.

The Python Editor is split into two areas. The bottom-half is the input field. The top-half is the output. The input field of the Python Editor functions like a basic plain text editor. You can type, select, cut, copy, paste, and execute code.

A Python Editor with its input and the output field

The output field behaves like a typical console output. It records the output stream, including return values and errors. Errors appear in red.

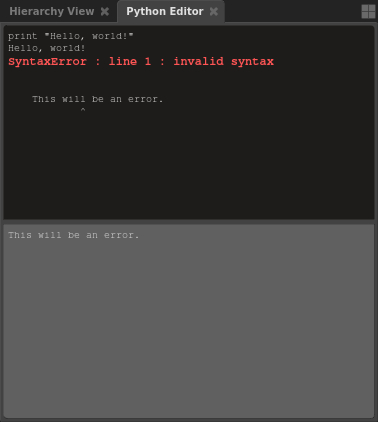

Errors in a Python Editor's output field

Caution

Code in Expression nodes is handled by a separate interpreter, and the syntax between them and the Python Editor should not be considered safely compatible.

Instructions

Executing code

Executing code will erase the input field, just like in a debug console. However, if you highlight any part of the code, only that part will execute, and the whole input will be preserved.

To execute code with the Python Editor:

  1. Enter code into the input field.
  2. Hit Ctrl + Enter.

Tip

A useful debugging trick is to highlight any part of the input code in order to preserve the whole input for reuse.

Accessing elements and data from other editors

The Python Editor can access the same graph elements (nodes and plugs) and scene and image data results (locations, objects, and so on) visible in the various other editors. However, this requires inputting precise dictionary syntax, data types, and code. Instead of typing out the exact code, you can use a shortcut: simply click and drag the element or data from the editor into the Python Editor’s input field.

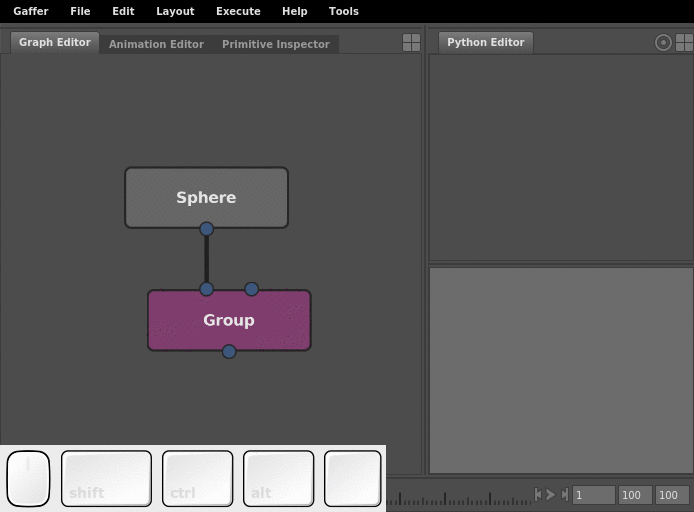

Dragging elements of the graph from the Graph Editor to the Python Editor

The specific shortcut for dragging depends on the source editor:

Element Source editor Shortcut Cursor Example code result
Node(s) Graph Editor Middle-click and drag Nodes root['Sphere']
Plug Node Editor Click and drag Plug root['Sphere']['radius']
Plug value Node Editor Middle-click and drag Values 2.7
Object(s) Viewer Click and drag Objects ['/sphere']
Scene location(s) Hierarchy View Click and drag Objects ['/sphere']
Scene data Scene Inspector Click and drag Values V3f(1.5, 2.7, 3.9)

Note

When pulling scene data, remember to consider the evaluated node’s effect on the scene hierarchy, because an object’s location in the hierarchy can vary from node to node. For example, if a Group node puts a sphere in /group/sphere, but you query the Group node using the original /sphere path, you will have queried a location that no longer exists, as far as that node is concerned.
